Overview

Basic Info.

Model NO.	110-600mm, 600-1200mm, 1200-2000mm
Product Type	Plastic Pipe
Screw	Single-Screw
Automation	Automatic
Computerized	Computerized
Certification	ISO9001:2008, QS
Customized	Customized
Pipe Diameter	From 110mm to 2000mm
Raw Material	PE
Calibration Method	Vacuum and Water Spraying Cooling
Cutting Method	Planeatry Cutting
PLC	Siemens
Transmission Type	Rigid
Automatic Production Line	Comprehensive
Flexible Production	Intelligent Manufacturing
Rhythm	Flow Production Line
Production Scope	Product Line
Transport Package	Standard Export Packing
Specification	Completed line
Trademark	HSD
Origin	Qingdao, China
HS Code	8477209000
Production Capacity	150-1200kg/H for Different Sizes of Pipes

Packaging & Delivery

Package Size1200.00cm * 230.00cm * 260.00cm Package Gross Weight1000.000kg

Product Description

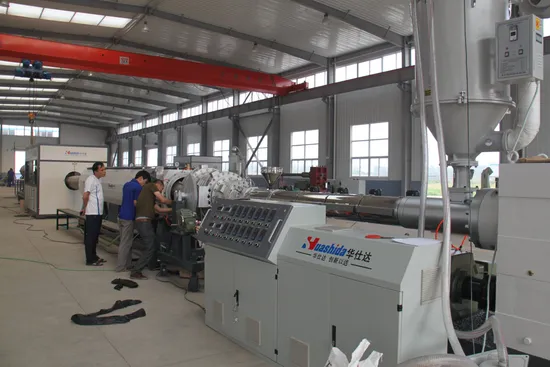

It is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-insulated Pipe.It is small in size, easy to operate with the automatic control system and has a long service life.Production line composition:-1set Vacuum loader -1set Hopper dryer-1set High-efficiency single screw extruder-1set Vacuum calibration table -1set Water spraying tank -1set Hauling machine-1set Cutting machine-1set Discharging Frame---Pipe Usage: outer casing of thermal preinsulated pipe, which is widely used in district heating and cooling, oil, gas and other industrial areas.

---High-efficiency extruder gives larger output, stable performance.

---Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.---No need trim the edge, once forming.---High degree of automation, can be operated by one person, saving labor costs.

1. High-efficiency single screw extruder

---Single screw is with barrier & mixing head; new model barrel with slotting (channel), Both make the security of good plasticization, large output and stable performance. It adopts blade punching principle to realize no-dust cutting. It is mainly composed of cutting device, clamping device, structure synchronous movement device and frame.6.Control system The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system can be designed according to customers' requirements. 7.Discharging Frame
The table surface is made of stainless steel. It adopts pneumatic overturn and discharging automatically.

Our team
Delivery
Exhibition

Certifications

Product Description

Pre-Insulated Steel Pipe HDPE Plastic Casing Seamless Smooth High effection Extrusion Line

Our Advantages

Style	PE-110/600	PE-365/760	PE-655/1380	PE-960/1680	PE-1054/1860
Main Extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ365-760m	Φ655-1380mm	Φ960-1680mm	Φ1054-1860mm
Capacity	250-350kg/h	400-500kg/h	700-900kg/h	1000-1200kg/h	1000-1250kg/h
Installed power	160kw	240kw	480kw	580kw	580kw
Length	30m	32m	36m	40m	45m

Detailed Photos 2. Die-Head Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings. The inside surface touching with plastic materials is polished and chrome plated to ensure plastic materials flow smoothly and to ensure no rusting. The uniformity of pipe wall thickness can be adjusted by bolts. The copper calibrating sleeve fixed in die-head is mainly used to cool down the fresh pipe and to calibrate the pipe outer diameter.3. Vacuum Calibration Tank Vacuum calibration tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, position adjustment device. The vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating copper sleeve and to calibrate the outer diameter. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.4. Haul-off Machine Haul-off machine is mainly composed of driving device, track, clamping structure, adjusting system, side plate and foundation bed. Haul-off tracks are driven by AC motor with frequency conversion control to adapt to different extrusion speed. Automatic length measuring device realizes cutting at a set length.5. No-Dust Cutter Company Profile Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience. Our main products are:1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)2. Rigid pre-insulated pipe Production Line3. Flexible pre-insulated pipe(PERT) production line4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line5. Steel pipe derusting line6. PE pressure pipe/Water Gas supply pipe production line6. PP/PE plastic board/sheet/geomembrane production line7. NBR PVC Thermal insulation tube/plate production line 8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
